Transmission Map

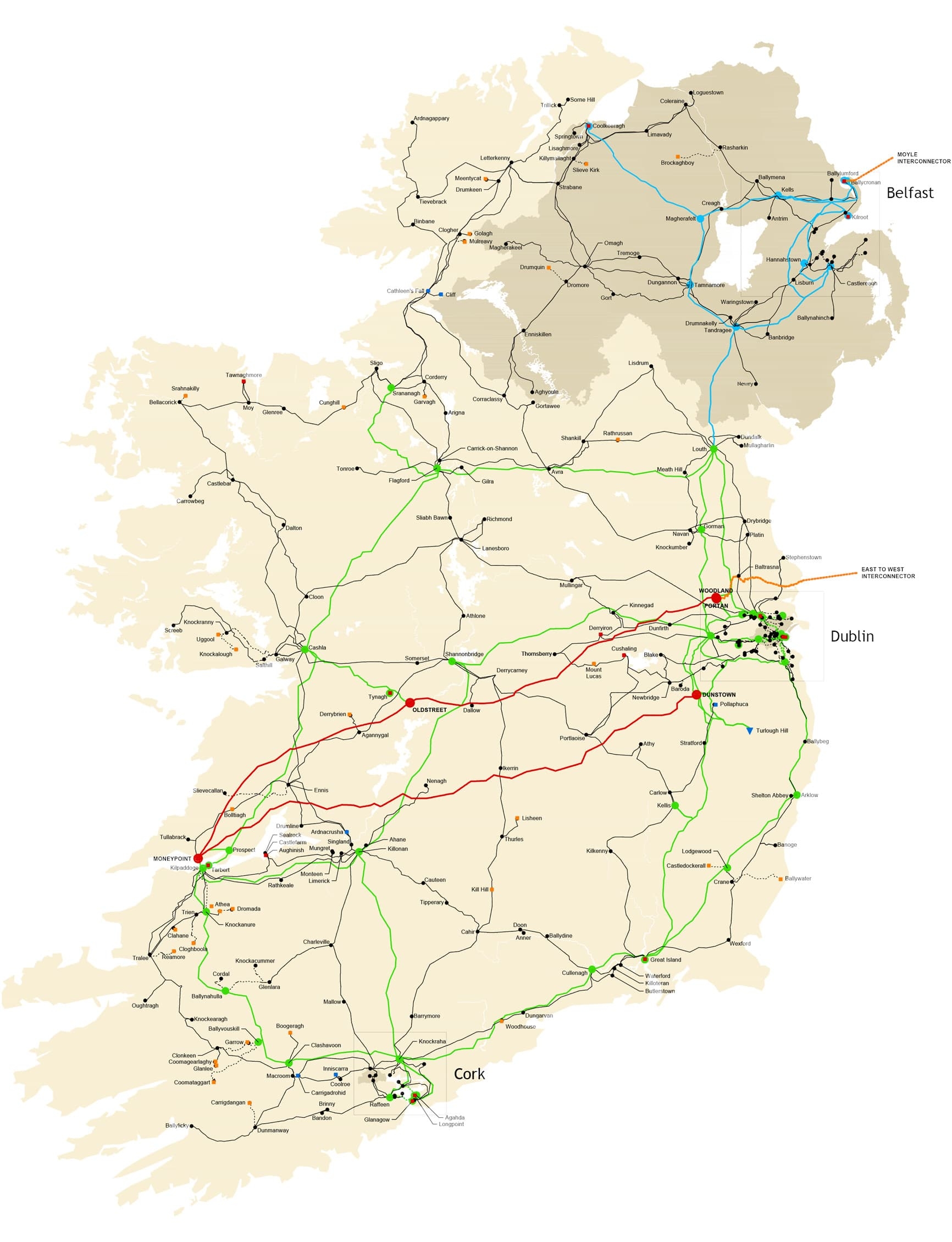

This map shows the electricity network's transmission system for the island of Ireland. See the locations for hydro, thermal, wind and pumped storage electricity generation. It details lines, cables and stations for 400, 275, 220, and 110 kV.
400kV LINES
275kV LINES
220kV LINES
110kV LINES
220kV CABLES
110kV CABLES
HDVC CABLES
400kV STATIONS
275kV STATIONS
220kV STATION
110kV STATION
TRANSMISSION CONNECTED GENERATION
HYDRO
GENERATION
GENERATION
THERMAL GENERATION
PUMPED STORAGE GENERATION
WIND GENERATION
